TRN Series
Premium Nitrogen Reflow Solution
TRN Series
Intelligent, Low Energy, Super-clean N2 Reflow System
The TRN N2 Reflow System delivers flawless soldering quality by utilizing aerospace-grade thermal technology to achieve industry-leading temperature uniformity. Featuring proprietary energy-saving designs and intelligent N2 flow control, it drastically reduces Total Cost of Ownership (TCO).
This premium solution is optimized for Smart Factories demanding both high production efficiency and superior reliability.
Unrivaled Performance
Aerospace-Grade Thermal Engineering & Precision Controls
Modern SMT lines require absolute control. The TRN Series guarantees an ultra-stable nitrogen atmosphere, maximizing solder joint reliability and preventing oxidation. By combining high-capacity blower motors with aerospace-grade thermal insulation, we maintain an incredibly low Delta-T across the entire board.
- Ultra-Stable N2 Atmosphere: Our advanced high-purity nitrogen control technology maximizes solder wettability and completely prevents oxidation, ensuring the highest quality joints.
- Precision Thermal Uniformity: By integrating aerospace-grade high-efficiency insulation with high-capacity blower motors, we maintain equipment surface temperatures below 35°C and achieve the industry's best Delta-T.
Advanced Connectivity & Full Traceability
Real-Time Temperature (RTPM) & O₂ PPM (RPPM) Monitoring

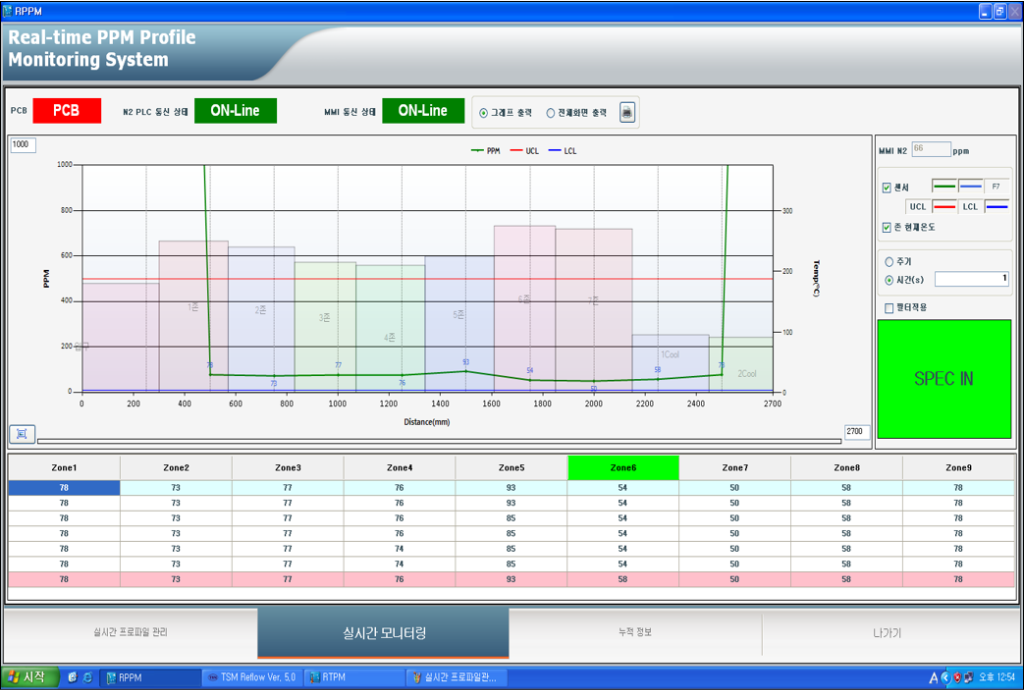

The TRN system empowers your Smart Factory with unmatched data transparency. Powered by a comprehensive real-time monitoring ecosystem, it simultaneously tracks critical production metrics, including temperature profiles(RTPM) and O2 PPM levels(RPPM). This all-encompassing surveillance allows the system to instantly detect even minute process drifts, ensuring proactive quality control and providing complete traceability for every board produced.
Eco-Friendly Design
Closed-Loop N2 Recycling. Over 30% reduction in N2 consumption.

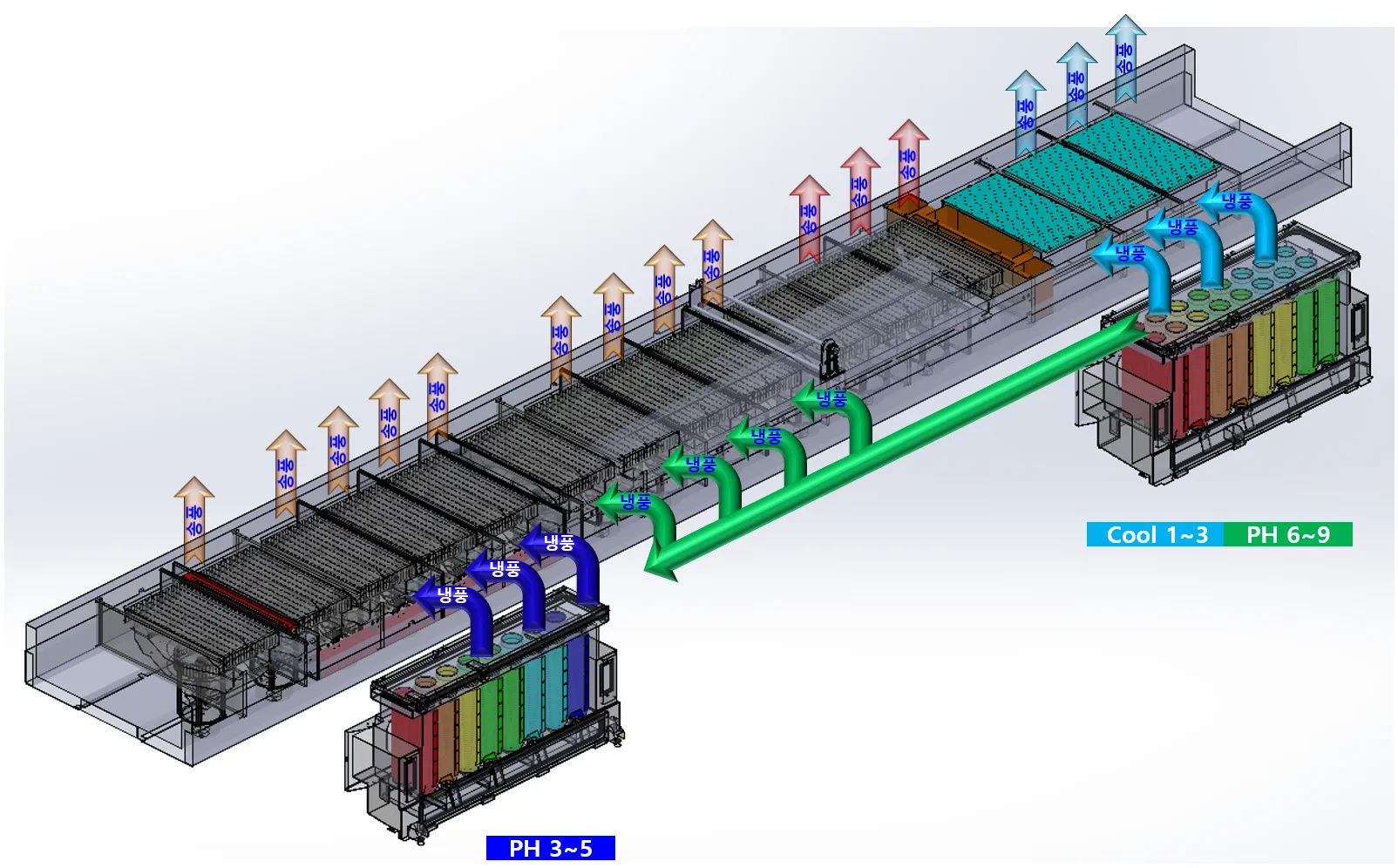

Sustainability meets cost reduction. The TRN Series incorporates a Closed-Loop N2 Recycling System that continuously filters, purifies, and recirculates nitrogen gas. Powered by advanced PID flow control, this system reduces N2 consumption by more than 30% compared to conventional ovens.
- Advanced N2 Recycling System: Achieves over 30% reduction in nitrogen consumption compared to competitors through precision PID flow control and a Closed-Loop recycling structure that constantly filters and recirculates purified nitrogen.
- Low-Power Architecture: Our intelligent Multi-Stage Start-Up function lowers initial peak power draw by 25% to 50%, significantly minimizing electricity costs and reducing your carbon footprint.
Uptime & Safety
High Reliability Maintenance with Triple-Stage Filtration
Production uptime is critical. Our triple-stage Flux Management System (FMS) actively extracts flux residues from the inlet, heating, and cooling zones. The cooling plates are coated with premium Teflon to prevent stickiness, allowing rapid tool-free maintenance.
- Triple-Stage Filtration: A comprehensive 3-step flux removal system covering the Inlet, Cooling, and Heating zones protects the process environment from contamination and flux residues.
- Teflon Quick-Change Plates: Cooling zone plates are treated with special Teflon coating to prevent adhesion, and the FMS filters are designed for tool-free, rapid replacement.

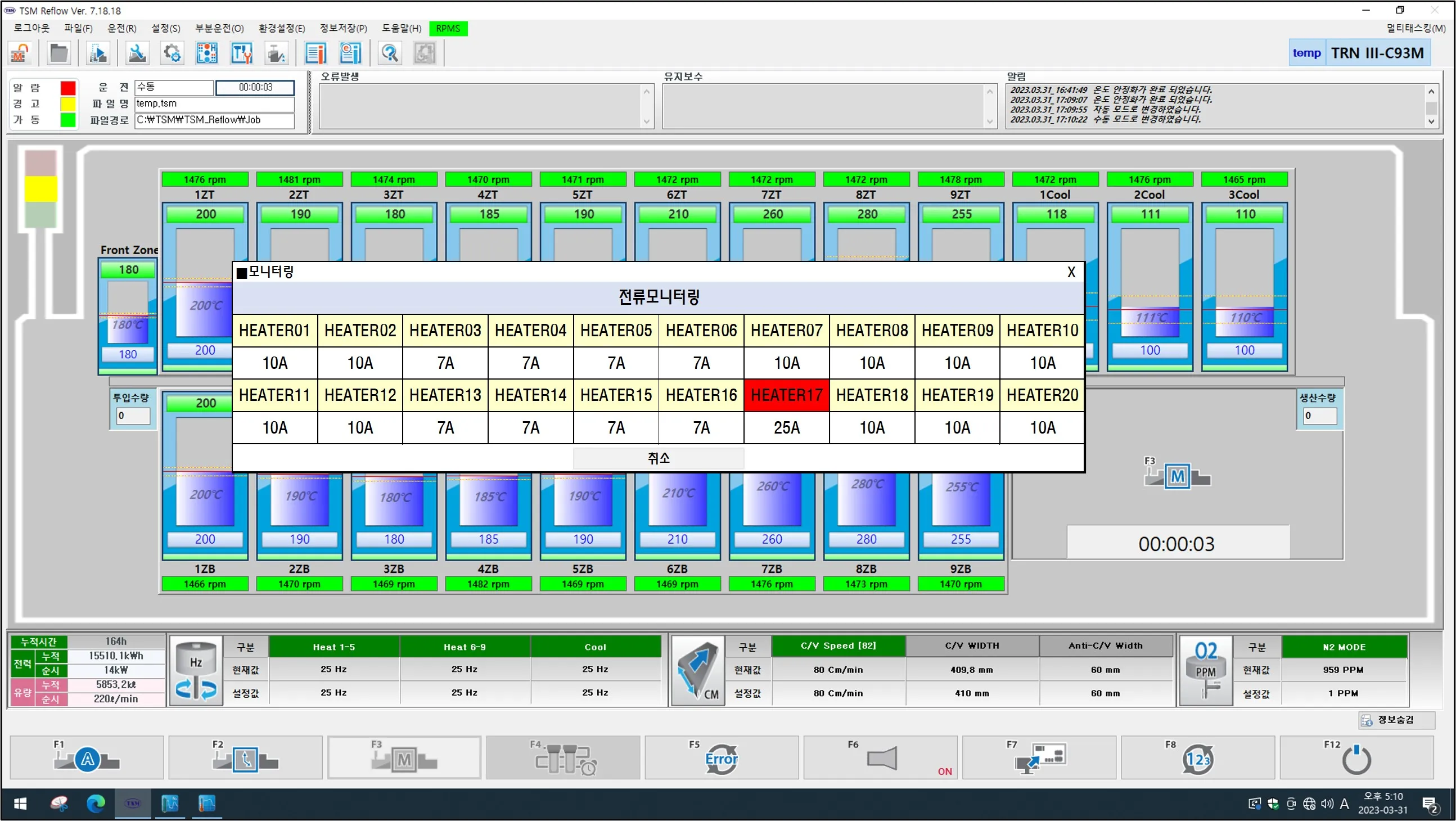

- Proactive Safety Monitoring: The system continuously scans blower motors and heater states. If overheating or motor overload is detected, it triggers immediate protection modes to eliminate fire risks.
Cartridge FMS & Teflon Chamber
Revolutionary Flux Extraction and Zero-Sticking Inner Geometries
Swappable Cartridge FMS
The N2 process chamber is highly sensitive to flux contamination. Accumulated flux residues degrade nitrogen purity and directly affect solder joint quality. Our industry-first revolutionary cartridge-type Flux Management System (FMS) is engineered for effortless maintenance and offline cleaning.
By keeping a spare cartridge set, operators can swap the contaminated FMS unit in minutes without stopping production, achieving continuous 24/7 oven uptime.
Teflon Coated Chamber
To eliminate the risk of flux sticking to the interior walls, the entire reflow chamber is structured with Teflon-coated stainless steel.
This advanced material engineering prevents flux condensation from adhering inside the chamber. Residues slide off the surface easily, facilitating faster cleaning, keeping the atmosphere pure, and ensuring zero-defect soldering results.
Versatile Scalability
Zoning and Multi-Lane Configuration Tailored for Your Line

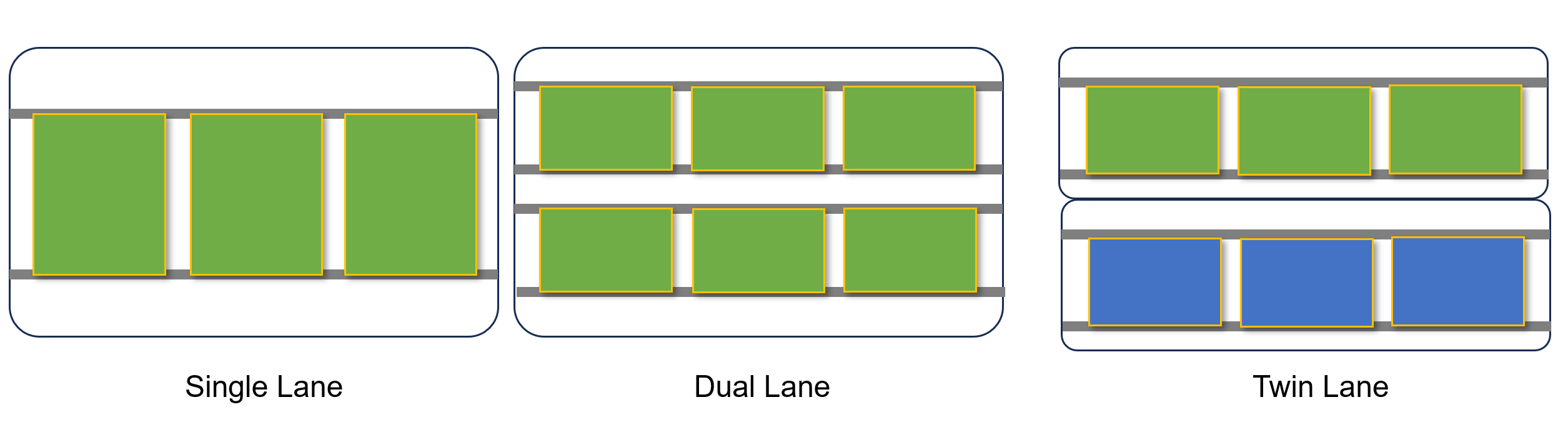

Adapt to any production demand. The TRN Series is highly scalable, offering custom-tailored configuration options from 9 zones to 13 zones. For high-volume manufacturing, independent single, dual, or twin conveyor lanes can be integrated, each with synchronized speed drives to optimize throughput and match your exact production profile.
- Customized Heating Zones: The TRN Reflow Oven offers flexible heating zone configurations ranging from 9 Zones to 13 Zones to suit your specific process requirements.
- Multi-Lane Transport Options: Supports Single, Dual, and Twin lanes with synchronized independent speed drives to optimize throughput.
Ready to Upgrade Your Production?
Contact our engineering team to request a customized quote or to schedule a technical consultation for the TRN Series Nitrogen Reflow Oven.
